OpenStrike Expanded Toolkit — 106 New Files, Complete CS Arsenal Exposed

Campaign Identifier: OpenStrike-CSBeacon-Toolkit-172.105.0.126
Last Updated: April 8, 2026
Threat Level: HIGH

Note on UTA identifiers: “UTA” stands for Unattributed Threat Actor. UTA-2026-004 is an internal tracking designation assigned by The Hunters Ledger to actors observed across analysis who cannot yet be linked to a publicly named threat group. This label will not appear in external threat intelligence feeds or vendor reports — it is specific to this publication. If future evidence links this activity to a known named actor, the designation will be retired and updated accordingly.

1. Executive Summary

Bottom Line Up Front: A previously identified threat actor (UTA-2026-004 (an internal tracking label used by The Hunters Ledger — see Section 8)) was found staging a complete offensive toolkit across 106 files on the same open directory documented April 6, 2026. The toolkit includes cracked Cobalt Strike 4.9.1, a four-generation custom implant development chain (the newest generation still work-in-progress), and a Layer 2 network tunneling module. Overall risk: HIGH (7.5/10). The toolkit is assessed as pre-deployment — no confirmed victims. The highest-priority defensive finding is an EAX-redirect process injection technique that bypasses the detection logic most endpoint security products use for this attack class. 72 of 98 samples submitted to VirusTotal had no prior submissions and no prior public reporting.

What Was Found

Continued monitoring of the open directory at 172.105.0.126:8888 surfaced 106 additional files not present in the original investigation. Triage and deep-dive analysis across 18 selected samples revealed the full scope of the operator’s toolkit: a 4-generation custom implant family (OpenStrike), the complete CS 4.9.1 “Pwn3rs” cracked installation with all post-exploitation capability modules, a CovertVPN Layer 2 bridge module with ICMP tunneling, an Artifact Kit service variant using EAX-redirect process hollowing, and six loader variants from a shared GCC 15 codebase. 72 of 98 samples submitted to VirusTotal had no prior submissions, indicating these samples had not been publicly reported on before this investigation.

Why This Report Was Written

The original April 6 report documented the existence of OpenStrike and confirmed UTA-2026-004’s custom implant development. It did not have visibility into the complete CS installation, the full beacon development chain from prototype to current work-in-progress, the CovertVPN network tunneling capability, or the EAX-redirect process hollowing technique embedded in the Artifact Kit service variant. This report closes those gaps.

Key Risk Factors

Overall Risk Score: 7.5/10 — HIGH

Threat Actor: UTA-2026-004 (maintained from April 6 report). No attribution upgrade warranted — see Section 8 for full assessment.

For Technical Teams

• The EAX-redirect hollowing detection gap (Section 4.2) is the highest-priority defensive finding: EDR rules anchored on NtUnmapViewOfSection will miss the Artifact Kit service variant entirely. Anchor detection on SetThreadContext called against suspended-state threads from service processes.
• CovertVPN’s ICMP tunnel is detectable by the 0xDD/0xCC frame markers in ICMP payloads >128 bytes (Section 4.3). Most perimeter monitoring tools will miss this without deep packet inspection.
• The OpenStrike gen-4 beacon’s C2 polling pattern (HTTP GET /updates?id=%08x every 4,500–5,500ms, POST /submit?id=%08x) is the highest-fidelity network detection for the custom implant family (Section 4.1).
• IOC feed (new indicators only, not duplicating April 6 feed): /ioc-feeds/new-files-found-20260408-iocs.json
• Detection rules (YARA, Sigma, Suricata): /hunting-detections/new-files-found-20260408-detections/

For Executives

No immediate incident response is required — this toolkit is assessed as pre-operational with no confirmed victim intrusions. Priority actions are detection deployment and extension of existing network blocks (documented in Section 13). Risk is elevated from the April 6 assessment because the expanded toolkit reveals capabilities (CovertVPN Layer 2 tunneling, EAX-redirect process injection) not visible in the original 7-sample analysis.

2. Relationship to April 6 Report

Analyst note: This report is a continuation of the original OpenStrike analysis published April 6, 2026. Readers unfamiliar with the original report are strongly encouraged to read it first — it establishes the OpenStrike family name, the Trinity Protocol cryptographic architecture, and the initial infrastructure profile for 172.105.0.126. This report documents only what was new in the expanded file set.

The April 6 report (/reports/open-directory-172-105-0-126-20260406/) documented 7 custom samples recovered from an open directory at 172.105.0.126:8888. The investigation used an infrastructure-first discovery method that identified the toolkit before any victim could be confirmed. That report covered:

• OpenStrike gen-3 beacon (beacon.exe, 299KB, 11 commands, RSA-2048 Trinity Protocol)
• 5 shellcode loader variants from a shared GCC 15 codebase
• A cracked CS 3.x DLL with tripwired ReflectiveLoader
• The “Trinity Protocol” cryptographic architecture (AES-128-CBC + HMAC-SHA256 + RSA-2048)
• C2 infrastructure on ports 80, 8443 at 172.105.0.126

What this report adds:

3. Malware Classification & Sample Inventory

3.1 Classification

3.2 Sample Inventory by Category

Note on encrypted sleeve DLLs: 56 of 106 files are AES-128-CBC encrypted post-exploitation modules (Cobalt Strike “sleeve” DLLs including mimikatz, hashdump, and browser credential theft). Decryption was blocked by an auth/JAR keypair mismatch — the operator assembled their toolkit from multiple cracked CS distributions (see Section 5.3). Based on the CS 4.9.1 installation structure, these are stock CS post-ex modules. No custom intelligence was lost.

4. Technical Analysis

4.1 The OpenStrike 4-Generation Implant Evolution

Analyst note: This section traces the development arc of a custom C2 implant built from scratch — progressing from a bare HTTP polling stub to a fully cryptographically implemented beacon. Each generation represents a discrete engineering milestone. Understanding this progression matters for defenders because it reveals an operator actively building toward an implant that would be independent of Cobalt Strike’s RSA key infrastructure — and therefore invisible to CS-specific detection signatures.

The expanded file set exposed three generations of OpenStrike development that predated the gen-3 beacon documented in the April 6 report. Together, the four generations document the operator’s entire development arc.

Development Chain:

Gen-1: mini_beacon.exe (16KB, GCC 15)
  SHA256: 03492f128fcc3910bda15f393c30ad3e04f5a50de36464d1e24038f49d889324
  - HTTP-only poller, no crypto, no commands
  - C2: Cookie: SESSIONID=%d on port 80
  - Beacon ID: PID XOR GetTickCount() — random per run, not trackable
  - Sleep: 4,500–5,500ms (GetTickCount jitter)
  - Purpose: Proof-of-concept HTTP callback with no operational capability
        |
Gen-2: mini_beacon2.exe (46KB, GCC 15)
  SHA256: 9bdb680d4368713273509e8c104c1903b9790ee725cc2319997e1da705af5ca0
  - Adds RSA-1024 beacon registration via BCrypt CNG
  - Structured binary registration packet (magic header 0xEFBE0000)
  - Host fingerprinting: elevation check, internal IP enumeration, process masquerade ("svchost.exe")
  - RSA-1024 key byte-for-byte identical to CS 4.4 ecosystem (Key B)
  - Still no commands — pure registration + poll loop
  - Sleep: fixed 5,000ms (jitter removed)
  - Purpose: Registration protocol development, CS key ecosystem integration
        |
Gen-3: beacon.exe (299KB, GCC 15) — PUBLISHED APRIL 6
  SHA256: 7d6a17754f086b53ee294f5ccd60b0127f921520ce7b64fea0aebb47114fb5d2
  - 11 commands, RSA-2048 key exchange (Trinity Protocol)
  - AES-128-CBC + HMAC-SHA256, hardcoded IV "abcdefghijklmnop"
  - Operational with documented gaps (see April 6 report)
  - Switched from RSA-1024 (Key B) to RSA-2048 (Trinity Key A)
        |
Gen-4: beacon_windows_x64.exe (30KB, GCC 15.2.0) — NEW
  SHA256: 042761408e83155d24884a72291d9f10803becd790fbcfa6ff65e9e72eb44446
  - Rewritten: 10x smaller than gen-3
  - 10 active commands + NOP handler
  - SHA256(nonce) symmetric key derivation — NO RSA dependency
  - AES-128-CBC + HMAC-SHA256-128 (Encrypt-then-MAC pattern)
  - CRITICAL: Nonce never transmitted to server — key exchange incomplete
  - WIP/development artifact with correct crypto, broken protocol

What the Crypto Migration Tells Us:

Gen-1: No crypto
Gen-2: RSA-1024 Key B (imported from CS 4.4 distribution)
Gen-3: RSA-2048 Trinity Key A (imported from CS 3.x distribution)
Gen-4: SHA256 symmetric — no RSA from any source

The operator deliberately progressed through two CS RSA key ecosystems before abandoning RSA entirely. The key migration from CS 4.4’s RSA-1024 (gen-2) to the Trinity RSA-2048 (gen-3) demonstrates the operator understood how to extract RSA keys from beacon DLLs and embed them in custom code — an intermediate CS internals skill. The elimination of RSA in gen-4 shows intentional architectural independence: the operator is designing a custom C2 that does not require a CS team server to function.

If a gen-5 implementation resolves the missing key exchange mechanism, it would produce a fully functional custom beacon independent of all cracked CS infrastructure — and invisible to every CS-specific network and behavioral detection signature.

4.1.1 Gen-4 Full Technical Reversal: beacon_windows_x64.exe

Analyst note: This section documents the complete function-level reversal of the gen-4 custom beacon using a disassembler (Ghidra). Every function was reversed. The level of detail matters because gen-4 represents the operator’s current development target — understanding its architecture now means defenders can build detection signatures before it becomes operational.

File Properties:

Complete Reversed Function Map:

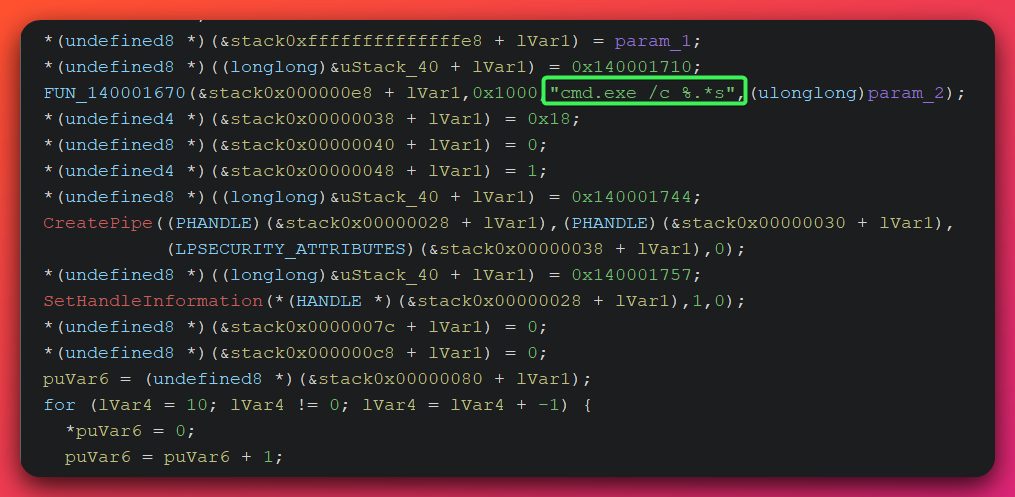

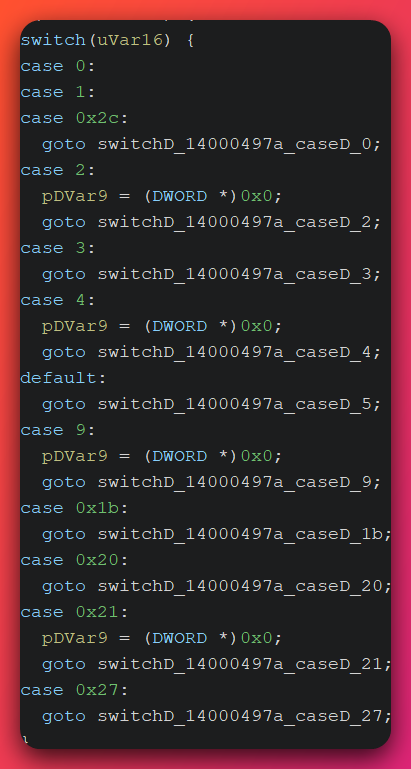

Command Dispatch Table (10 active commands + NOP):

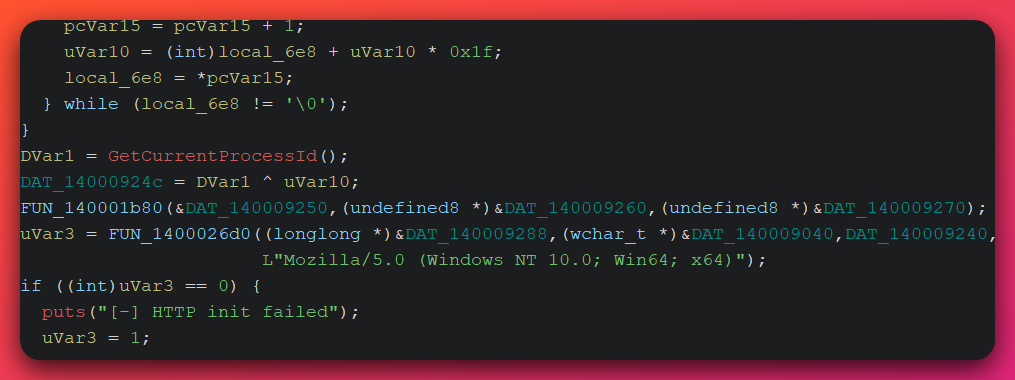

Beacon ID Generation:

The beacon generates a deterministic host identifier using a djb2 hash variant (multiplier 0x1f = 31) of the host’s ComputerName, XOR’d with the current process ID. Unlike gen-1’s random PID-based ID, this is consistent across restarts — the same host will report the same beacon ID, enabling the operator to track reconstituted implants after host reboots.

beacon_id = djb2(ComputerName, multiplier=31) XOR PID

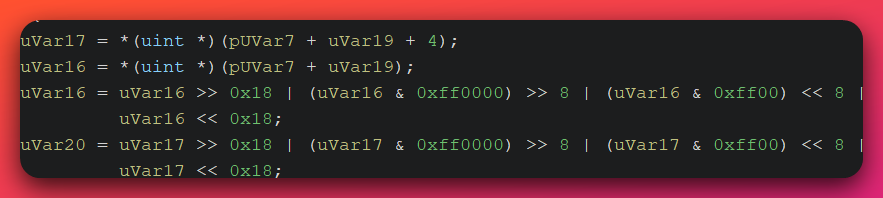

C2 Protocol Wire Format:

The beacon uses a custom TLV (Type-Length-Value) framing wrapped in an Encrypt-then-MAC envelope:

Inbound (task delivery from server):
  [4B header/sequence] [4B cmd_type big-endian] [4B data_len big-endian] [N bytes data] ...

Outbound (callback to server):
  [4B sequence_counter BE] [4B payload_len+4 BE] [2B zero] [1B zero] [1B callback_type] [N bytes payload]
  → AES-128-CBC encrypt → append HMAC-SHA256-128 tag
  → HTTP POST /submit?id=%08x

C2 Polling Pattern:

• HTTP GET to /updates?id=%08x approximately every 4,500–5,500ms (5,000ms base, 10% jitter via GetTickCount())
• Server must return HTTP 200; any other status code is ignored
• POST to /submit?id=%08x with Content-Type: application/octet-stream

4.1.2 Gen-4 Cryptographic Architecture

Analyst note: This section describes how the gen-4 beacon protects its network communications. The core idea: each session generates a random secret, derives encryption keys from it, and uses those keys to encrypt all traffic. The critical flaw: the server never receives the secret, so it cannot decrypt anything. This is why gen-4 is assessed as a work-in-progress rather than a deployed implant.

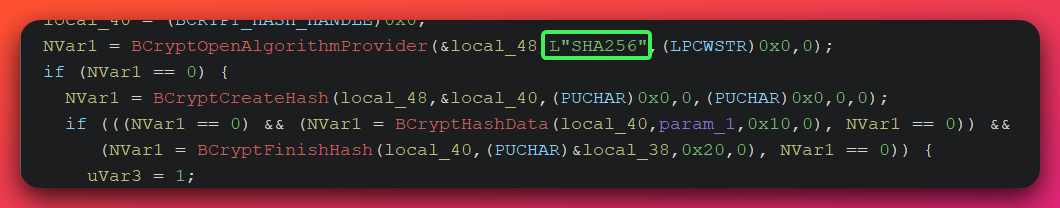

Key Derivation:

1. BCryptGenRandom(16 bytes) → session nonce
2. BCryptDeriveKey(SHA256, nonce) → 32-byte digest
   [0:16]  = AES-128 encryption key
   [16:32] = HMAC-SHA256 authentication key
3. Secure wipe: intermediate digest zeroed byte-by-byte

Encryption (outbound traffic):

1. AES-128-CBC(key=derived[0:16], IV="abcdefghijklmnop", PKCS#7 pad) → ciphertext CT

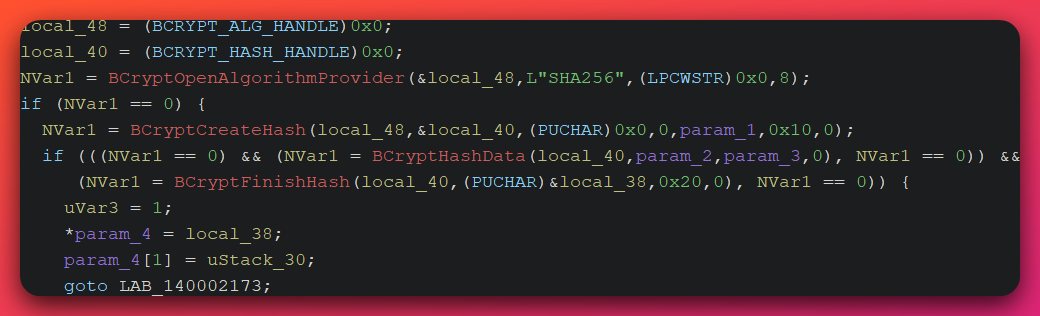

2. HMAC-SHA256(key=derived[16:32], data=CT) → truncate to 16 bytes → tag TAG
3. Wire format: [CT][TAG]

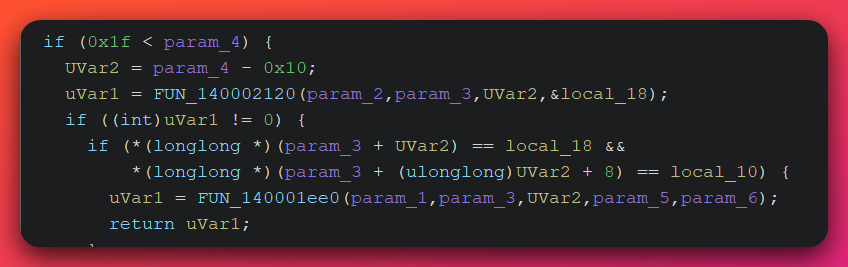

Decryption (inbound tasks):

1. Split: CT = data[0:len-16], TAG = data[len-16:len]
2. Verify: HMAC-SHA256(key, CT) == TAG  ← non-constant-time compare (two 8-byte qword ==)
3. Decrypt: AES-128-CBC(key, IV="abcdefghijklmnop", CT) → plaintext

Encrypt-then-MAC Pattern: This is the cryptographically correct ordering — authenticate the ciphertext, not the plaintext. Standard Cobalt Strike uses a similar split (SHA256 → [AES key][HMAC key]) documented by Elastic Security Labs and Unit42. The operator replicated CS’s key derivation pattern while eliminating the RSA dependency — indicating study of CS internals (MODERATE confidence, based on architectural similarity to documented CS crypto design).

Three Identified Crypto Weaknesses:

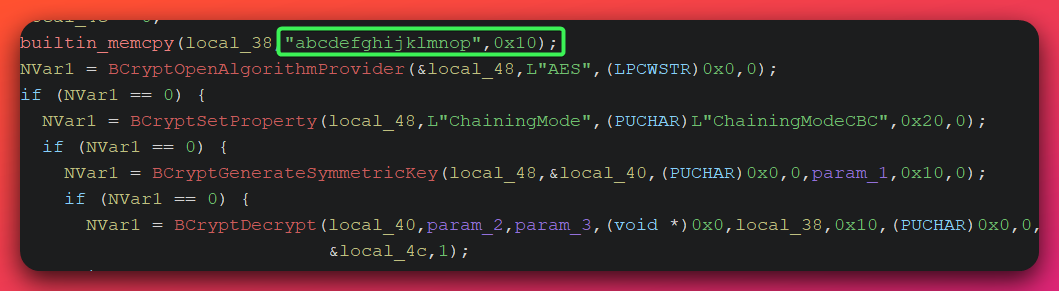

1. Static IV — "abcdefghijklmnop" is a 16-byte ASCII string used as the AES-CBC initialization vector for every session. Identical plaintext headers across sessions will produce identical ciphertext blocks. Partially mitigated by per-session random keys, but the static IV is a design flaw.

2. Non-constant-time HMAC compare — The MAC verification compares two 8-byte quadwords using the == operator. Theoretically exploitable as a timing oracle for HMAC forgery. Low practical risk over HTTP due to network jitter masking timing differences.

3. No TLS enforcement — WINHTTP_FLAG_SECURE is not set on the WinHTTP session. If port 8443 serves plain HTTP rather than HTTPS, the encrypted payload travels without outer TLS — leaving only the inner AES encryption.

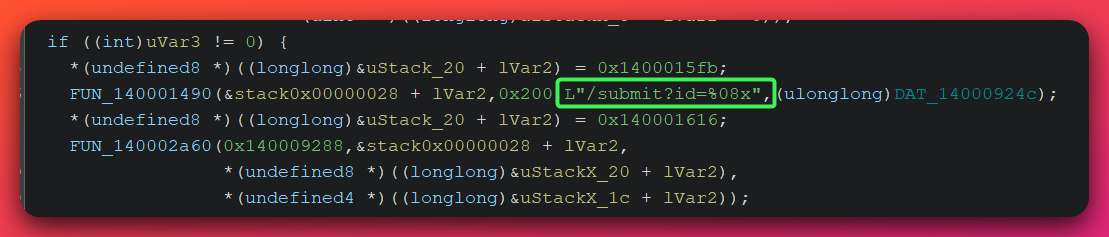

The Fatal WIP Flaw — Missing Key Exchange:

The session nonce is generated locally by BCryptGenRandom and never transmitted to the server. Without the nonce, the server cannot derive the AES and HMAC keys. No beacon session established by gen-4 can be successfully decrypted by the team server. This definitively marks gen-4 as a development artifact, not a deployed implant.

4.2 EAX-Redirect Process Hollowing: Artifact Kit Service Variant

Analyst note: This section explains a process injection technique that bypasses the detection mechanism most endpoint security (EDR) products use to catch the standard version of this attack. “Process hollowing” means launching a legitimate Windows program, then redirecting execution to malicious code so the malicious code runs inside the legitimate program’s identity. Most security products watch for one specific API call — NtUnmapViewOfSection — that is characteristic of the classic technique. This variant never makes that call. It achieves the same end result through a different path, creating a detection blind spot that will persist until EDR vendors update their detection logic.

Analyzed Files:

Both are Cobalt Strike Artifact Kit service templates — stock components included in the CS Artifact Kit for generating custom payloads that execute as Windows services. The GCC 9.2 compiler signature (distinct from the operator’s custom GCC 15 tooling) identifies these as stock CS components.

Full Execution Chain:

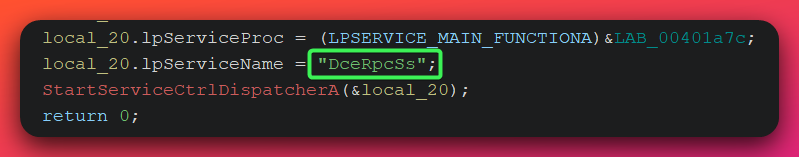

Step 1: Register as Windows service "DceRpcSs"
        → Masquerades as legitimate Windows Remote Procedure Call service (RpcSs)
        → Windows Security Event ID 7045 fires with ServiceName: DceRpcSs

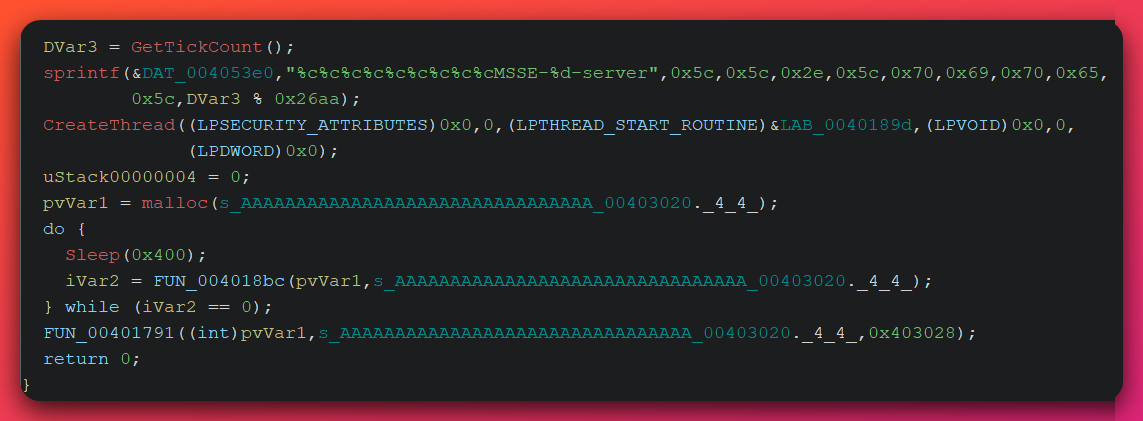

Step 2: Create named pipe \\.\pipe\MSSE-{N}-server
        → N = GetTickCount() % 9898 (range 0–9897)
        → Sysmon Event ID 17 (pipe created) fires

Step 3: Server thread writes XOR-encoded shellcode to the pipe
        → 4-byte rolling XOR key applied to shellcode bytes
        → Shellcode travels through kernel pipe buffer, bypassing some AV hooks

Step 4: Reader thread reads shellcode back from the pipe
        → 4-byte rolling XOR reverse decode
        → Patch GetModuleHandleA and GetProcAddress addresses into shellcode bootstrap

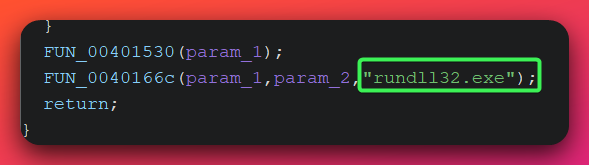

Step 5: Create rundll32.exe with CREATE_SUSPENDED
        → rundll32.exe spawned with no command-line arguments
        → Thread is suspended — execution not yet begun

Step 6: VirtualAllocEx(PAGE_READWRITE) in rundll32 process
        → Memory region is NOT executable at this stage
        → WriteProcessMemory copies decoded shellcode into that region

Step 7: VirtualProtectEx(PAGE_EXECUTE_READ) — two-stage RW→RX
        → Memory protection changed from write-only to execute-only
        → Memory is never simultaneously writable AND executable

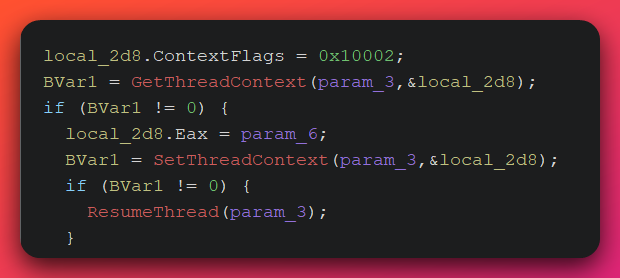

Step 8: GetThreadContext → ctx.Eax = shellcode base address → SetThreadContext
        → EAX register (the x86 entry point / return address register) pointed at shellcode
        → Original rundll32.exe image remains mapped and untouched

Step 9: ResumeThread
        → rundll32.exe resumes execution from EAX = shellcode base
        → Shellcode runs inside rundll32.exe's process identity

The Critical Distinction from Classic Process Hollowing:

Why This Detection Gap Is Systematic:

The Cobalt Strike Artifact Kit service variant is a stock CS component — not a modification by UTA-2026-004. This means the EAX-redirect detection gap affects every CS deployment using the default Artifact Kit service template, not just this campaign. Organizations relying on NtUnmapViewOfSection monitoring for T1055.012 coverage should audit whether their EDR coverage extends to SetThreadContext-based variants.

The two-stage RW→RX memory protection sequence additionally defeats single-stage RWX allocation detection rules, which commonly flag VirtualAllocEx with PAGE_EXECUTE_READWRITE as high-confidence malicious. This variant never creates a RWX region.

How to Detect EAX-Redirect:

• Monitor SetThreadContext API calls targeting threads in a suspended state — especially when the calling process is a service binary and the target process is rundll32.exe with no command-line arguments
• Alert on the call chain: VirtualAllocEx → WriteProcessMemory → VirtualProtectEx(RX) → SetThreadContext all originating from the same PID within a short time window
• Sysmon Event ID 10 (process access) catches the cross-process memory operations. Sysmon Event ID 8 (CreateRemoteThread) will NOT fire — this variant uses SetThreadContext, not CreateRemoteThread.
• Pre-execution indicators: service name DceRpcSs (Security Event 7045) and named pipe pattern MSSE-*-server (Sysmon Events 17/18) are reliable early warning signals

Named Pipe Default — Stock Indicator:

The named pipe \\.\pipe\MSSE-%d-server (where %d = GetTickCount() % 9898) is a well-documented default Artifact Kit indicator. CS hunting guides describe this as a “dead giveaway” for operators who deploy the Artifact Kit without modifying default configurations. UTA-2026-004 has not changed this default.

4.3 CovertVPN: Layer 2 Network Tunneling

Analyst note: CovertVPN is a Cobalt Strike module that creates a bridge between the attacker’s machine and the victim’s internal network, operating at the raw Ethernet frame level. Standard proxy pivoting (SOCKS) lets an attacker reach specific services. CovertVPN hands the attacker full Layer 2 network access — ARP scanning, raw protocol attacks, VLAN traversal, and any network capability routable through the victim host. It is a specialized capability that requires administrator access and silently installs a kernel-mode driver on the victim system.

File Properties:

Five Transport Channels:

ICMP Tunnel Protocol:

The ICMP transport is the most operationally interesting channel because ICMP is routinely permitted through network perimeters and rarely inspected at payload depth.

ICMP payload frame structure:
  [2B big-endian frame length] [frame data]
  → Multiple frames packed per ICMP packet (maximum ~8KB)

Frame type markers (at payload offset 4-5):
  0xDD = data frame (Ethernet frame data follows)
  0xCC = keepalive heartbeat (no data)

Direction: Bidirectional — both ICMP echo request (client→server)
           and ICMP echo reply (server→client) carry data/keepalive

Detection indicators for ICMP tunnel:

• ICMP echo request/reply packets with payload size exceeding 128 bytes
• Bytes 0xDD or 0xCC appearing at payload offset 4–5
• High-frequency ICMP exchange between the same endpoint pair (keepalive cadence)
• Anomalously high total ICMP byte volume from a Windows workstation

Embedded WinPcap 4.1.3 Deployment:

CovertVPN is self-contained — no WinPcap pre-installation is required. The DLL’s .data section embeds the full WinPcap 4.1.3 package (x86 and amd64 npf.sys kernel driver, wpcap.dll, Packet.dll). An architecture-aware dropper selects the appropriate npf.sys, writes it to %TEMP%\npf.sys, and installs it as a kernel driver service via the Windows Service Control Manager. Administrator-level access is required.

Detection indicators for WinPcap deployment:

• Sysmon Event ID 6 (driver loaded) from path %TEMP%\npf.sys
• Windows Event 7045 (new service installed) with service name npf
• wpcap.dll and Packet.dll written to the %TEMP% directory

Unpatched Config Template:

The AES key placeholder string "AAAABBBBCCCCDDDDEEEEFFFFGGGGHHHH" at config offset 0x100a2b58 is present in the recovered sample, indicating the CovertVPN module was not fully configured for operational deployment. A deployed operational instance would have this placeholder replaced with an actual AES-128 key. The placeholder is a YARA-detectable indicator (see detection file) that differentiates undeployed templates from operational instances.

4.4 Six Custom Loader Variants

Analyst note: A loader is a small program whose sole purpose is to load a larger malicious program into memory and execute it. The operator built six of these using a shared code template, each with a slightly different execution mechanism. Detecting the loader is often the first and best opportunity to catch an attack before the main payload runs — the loaders are simpler than the beacons and leave more predictable behavioral traces.

Five loaders share a common GCC 15 codebase with progressively specialized execution paths. A sixth uses a fundamentally different disk-based approach:

Code Reuse Tree:

beacon_loader.exe (base — 6,048 bytes .text)
  |-- beacon_srdi2.exe (identical .text, 310KB sRDI payload embedded)
  |-- beacon_rdi.exe (+240 bytes — RDI bootstrap, call at offset 0x1649c)
  |-- beacon_dl.exe (+304 bytes — CreateThread + WaitForSingleObject)
  |-- beacon_full.exe (+304 bytes — CreateThread, different payload)

dll_loader.exe (separate codebase — 30,720 bytes .text)

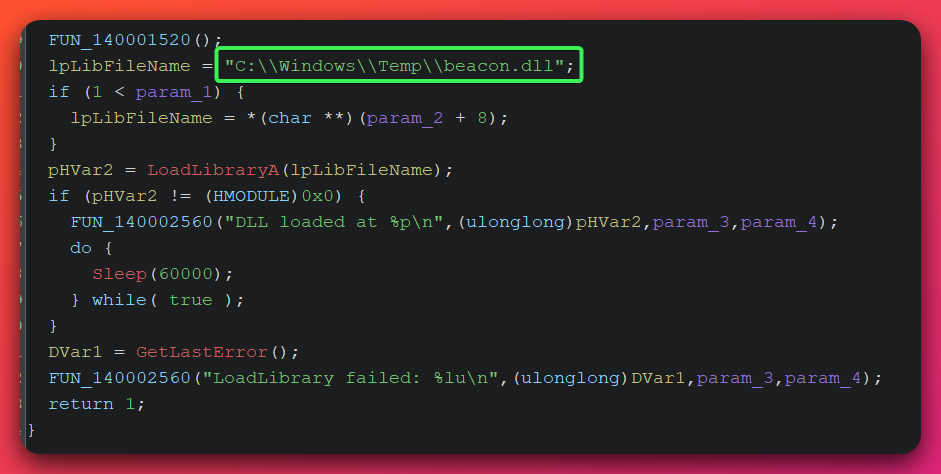

dll_loader.exe — The Disk-Based Outlier:

dll_loader.exe writes a beacon DLL to the hardcoded path C:\Windows\Temp\beacon.dll and loads it via LoadLibraryA. An infinite Sleep(60000) loop maintains the host process as a keepalive for the loaded DLL. This is the simplest loader in the set and the easiest to detect via file system monitoring.

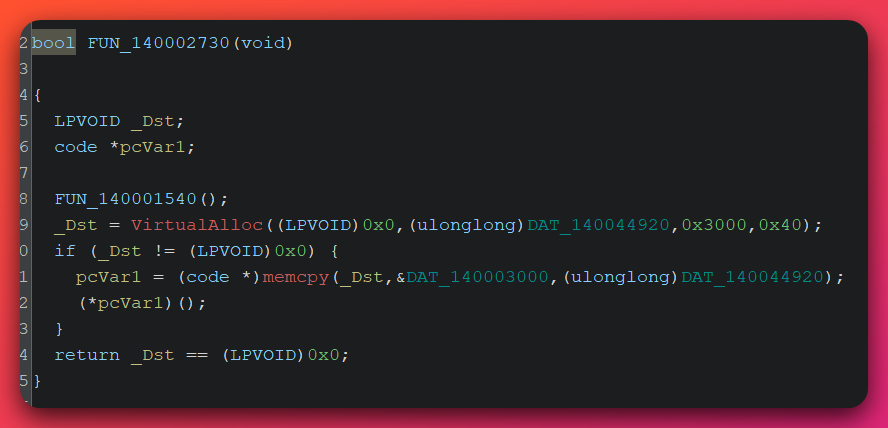

Shared Behavioral Pattern (all five in-memory loaders):

All five share a detectable behavioral sequence:

1. Single VirtualAlloc(MEM_COMMIT | MEM_RESERVE, PAGE_EXECUTE_READWRITE) — single-stage RWX allocation (contrast with Artifact Kit’s two-stage approach)
2. memcpy from .data section (embedded payload) into the RWX region
3. Execution via indirect function call (three loaders) or CreateThread (two loaders)

The single-stage RWX allocation is detectable by EDR behavioral monitoring for VirtualAlloc(PAGE_EXECUTE_READWRITE) followed by code execution from the allocated region.

4.5 Complete CS 4.9.1 Installation Overview

The cs_ts.log recovered from the open directory confirmed the team server operational profile:

Version:         CS 4.9.1 (Pwn3rs) — cracked/patched license
Team Server:     0.0.0.0:50050 (externally accessible)
SSL Cert SHA256: 6e8efd85110de376426cde809f25d50ffcbb1d0e39d11c82913757cb277e15dd
HTTP Listener:   x86 + x64, WinInet, Exit Function: Process
Active Beacons:  7 loaded; 0 keystrokes/screenshots/downloads recorded
Status:          Freshly deployed or recently wiped

Three Malleable C2 Profiles Confirmed:

Profile C impersonates Google Analytics and Internet Explorer 9 — the Mozilla/5.0 (compatible; MSIE 9.0; Windows NT 6.1; WOW64; Trident/5.0; BOIE9;ENUSSEM) user-agent string is a distinctive detection indicator, as IE9 is no longer in active use.

Stager Shellcode:

Both implement standard CS HTTP reverse stager behavior: PEB-walk API resolution, VirtualAlloc(RWX), InternetReadFile loop. The PowerShell stager uses AllocHGlobal + GetDelegateForFunctionPointer for shellcode execution — the standard PowerShell shellcode execution pattern.

Social Engineering Kit (stock, undeployed):

Six JavaScript templates recovered: analytics.js (credential harvester), keylogger.js (browser keypress capture with obfuscated variables), deployJava.js (Java plugin detection), reader.js (PDF reader detection), redirect.js, stay.js. All contain unsubstituted template placeholders — not customized for deployment.

5. Infrastructure Analysis

5.1 Server Architecture: 172.105.0.126

The single VPS at 172.105.0.126 serves five distinct operational roles:

OPSEC finding — port 50050 external exposure: The CS team server management interface is externally accessible. This exposes the operator’s team server to scanning, fingerprinting, and potential exploitation by third parties, and makes the installation trivially confirmable via Shodan.

Hosting context: Linode/Akamai Technologies (AS63949), Canadian jurisdiction (ARIN). Commercial mainstream VPS — zero bulletproof hosting indicators. Canadian jurisdiction significantly lowers the barrier for abuse reporting and law enforcement coordination relative to non-cooperative jurisdictions.

5.2 RSA Key Ecosystem Mapping

Two distinct RSA key ecosystems co-exist across 10 recovered beacon DLLs:

Key A — RSA-2048 “Trinity Protocol”:

• Modulus prefix: 9f12c9cb6582f379...
• Present in: CS 3.x beacon (watermark 0), CS 4.4 beacons (watermark 987654321)
• Custom beacon import: gen-3 OpenStrike — byte-for-byte identical key

Key B — RSA-1024:

• Modulus prefix: 008cadd72dbf3cc108...
• Present in: CS 4.4 beacons (watermarks 0 and 987654321), 5 artifact-wrapped beacons
• Custom beacon import: gen-2 OpenStrike (mini_beacon2.exe) — byte-for-byte identical

The operator extracted RSA keys from existing beacon DLLs and embedded them in custom implant code, then migrated from Key B → Key A → no RSA across the custom beacon generations. This demonstrates active tracking of and engagement with CS’s internal key architecture.

5.3 Auth/JAR Keypair Mismatch — OPSEC Finding

The .auth file on the open directory does not match the private key corresponding to the CS 4.9.1 JAR’s authkey.pub (RSA-2048, MD5: 8bb4df00c120881a1945a43e2bb2379e). This mismatch prevents decryption of all 56 encrypted sleeve DLLs. The full Java key derivation chain (Authorization, AuthCrypto, SleeveSecurity classes) was reverse-engineered to confirm the mismatch mechanism.

The mismatch is evidence of toolkit assembly from at least two different cracked distributions. This is an OPSEC failure pointing to opportunistic rather than systematic tool acquisition — an operator with a single trusted supply source would not produce this inconsistency.

6. Threat Intelligence Context

6.1 CS 4.9.1 “Pwn3rs” Cracked Distribution

Confidence: HIGH (85%)

“Pwn3rs” / “Pwn3rzs” is the branding of the most widely distributed cracked CS 4.9/4.9.1 package currently in active use. Distribution documentation:

• Origin date: Approximately 2023-10-09 via Telegram and Kanxue forum (bbs.kanxue.com threads 279166, 279348, 280276)
• SSL pivot: Shodan query ssl:"Pwn3rs Striked" identifies active deployments sharing this distribution — documented by researcher Chris Duggan (@TLP_R3D, September 2024)
• Attribution status: “Pwn3rs” is distribution branding, NOT an operator persona. Attributing this campaign to an actor named “Pwn3rs” would misrepresent the evidence.

Infrastructure pivot result: The specific SSL cert SHA256 6e8efd85... returned no hits in either open-source or paid threat intelligence platforms (Shodan and Censys paid queries both yielded zero results). This confirms the team server was either not indexed by internet scanners prior to the April 6 discovery, actively blocked scan traffic, or the cert is unique to this single deployment. This pivot is closed — no additional infrastructure was identified through certificate correlation.

6.2 CS Watermark 987654321 — Distribution-Level Indicator

Confidence: HIGH (88%) — distribution association, NOT operator identity

Watermark 987654321 is a high-prevalence pirated CS watermark found in multiple independent hunting datasets. Key documented associations:

• svch0st’s beacon hunting study (2021): among the most common non-zero watermarks in threat hunting datasets alongside 666666666 (Tier 3 source)
• Intel Dalal / Medium: identified on infrastructure pointing to Tencent API Gateway (service-owedaeao-1304783326.gz.tencentapigw.com.cn/api/x) — suggestive of Chinese-nexus origin (Tier 3 source)
• CybersecurityNews (DFIR Report attribution, 2024): found alongside 红队版.zip containing TaoWu, Landon (CS extension frameworks), and Viper C2 — characteristic of Chinese-language red team toolkit packaging

Critical finding — You Dun attribution rejected: The You Dun group has been documented using watermark 987654321. The infrastructure analyst explicitly assessed this attribution as INSUFFICIENT: Canadian Linode hosting (atypical for documented You Dun infrastructure), zero Chinese-language strings in 106 samples, no Chinese domestic C2 patterns, and no key overlaps with documented You Dun infrastructure. The shared watermark is explained by shared distribution availability, not operational linkage.

Prevalence caveat: Watermark 987654321 appears in hundreds of active CS deployments. Presence of this watermark alone is not a clustering signal — additional technical evidence is required to link deployments sharing this watermark.

6.3 EAX-Redirect in the Broader CS Ecosystem

Confidence: DEFINITE (95%) for technique classification

The EAX-redirect hollowing in the Artifact Kit service variant is stock CS behavior documented in Cobalt Strike’s official blog (“Cobalt Strike’s Process Injection: The Details”). The detection gap arises from the gap between what CS stock components do and what most EDR T1055.012 rules monitor — it is a systematic gap affecting all CS deployments using the Artifact Kit service template, not a UTA-2026-004-specific innovation.

CrowdStrike’s 2024 research on HijackLoader confirmed that EAX register redirect (SetThreadContext without NtUnmapViewOfSection) is observed in modern crimeware and remains a detection gap in endpoint products that rely on traditional API-based hollowing signatures.

6.4 Ecosystem Exposure

Software abused or embedded:

Hosting provider: Linode/Akamai Technologies (AS63949), Canada. Commercial legitimate VPS — no bulletproof hosting indicators. Canadian jurisdiction lowers the barrier for abuse reporting and law enforcement coordination. Downstream abuse risk to other Linode customers is limited to shared-IP reputation effects.

Supply chain implications: UNKNOWN — the toolkit is assessed as pre-deployment. No trojanized delivery vector or software supply chain compromise has been observed. The social engineering kit templates (analytics.js, keylogger.js) remain undeployed with template placeholders intact. No downstream victims or compromised legitimate software packages have been identified.

Developer ecosystem risk: The OpenStrike custom implant is a novel, undocumented family. If the operator completes gen-5 (resolving the missing key exchange), the resulting implant would be invisible to all CS-specific detection signatures and would represent an independent capability that other actors could potentially adopt or adapt if the operator’s development files were themselves leaked or shared.

6.5 Mixed CS Version Sourcing Pattern

Confidence: HIGH (87%)

CS 3.x + 4.4 + 4.9.1 co-existence with two RSA key ecosystems is characteristic of multi-distribution toolkit assembly over time. When a CS distribution is cracked and distributed, each distribution defines its own auth file, watermark, and RSA key pair. Mixing artifacts from two distributions creates the observable keypair mismatch documented here.

The inference: UTA-2026-004 accumulated artifacts from CS 3.x-era material (pre-2016 watermark 0), CS 4.4-era material (2021-era, watermark 987654321), and the 4.9.1 “Pwn3rs” team server (2023-era) — spanning participation in the cracked CS ecosystem over at least 2–3 years. The operator is a consumer of this ecosystem, not a producer.

7. VirusTotal Intelligence: 72-of-98 First Reports

All 10 custom GCC 15 operator tools — including all four OpenStrike beacon generations — were first-reports. OpenStrike has no prior public threat intelligence. The 26 previously known files were primarily Artifact Kit templates and the gen-3 beacon from the April 6 report.

8. Threat Actor Assessment: UTA-2026-004

Analyst note: This section addresses who is behind this campaign and what we can and cannot determine about their identity. The short answer is: we cannot identify a specific named actor. The longer answer explains what the evidence does tell us — and why the evidence that might suggest a Chinese-linked actor is insufficient for that conclusion.

Note on UTA identifiers: “UTA” stands for Unattributed Threat Actor. UTA-2026-004 is an internal tracking designation assigned by The Hunters Ledger to actors observed across analysis who cannot yet be linked to a publicly named threat group. This label will not appear in external threat intelligence feeds or vendor reports — it is specific to this publication. If future evidence links this activity to a known named actor, the designation will be retired and updated accordingly.

Attribution Decision: UTA-2026-004 — maintained. No upgrade warranted.

Confidence: INSUFFICIENT for any named actor (<50%).

“Pwn3rs” as actor persona — REJECTED: Pwn3rs/Pwn3rzs is cracked CS distribution branding originating from bbs.kanxue.com (October 2023), confirmed by multiple Tier 3 and forum-level sources. The name appears in team server logs because the cracked JAR’s license emulation code generates it — not because the operator chose it.

“You Dun” attribution — INSUFFICIENT: Watermark 987654321 overlap with documented You Dun cases is explained by shared distribution availability. Six technical dimensions contradict a You Dun/UTA-2026-004 linkage: hosting geography, language artifacts, C2 architecture, compiler toolchain, RSA key sets, and operational timing.

Alternative Hypotheses:

H1/H2/H3 cannot be distinguished with available evidence. The pre-operational assessment (H1) is the most consistent with the full evidence set.

Updated UTA-2026-004 Actor Profile:

Building on the April 6 profile, the following characteristics are now confirmed:

• CS 4.9.1 Pwn3rzs distribution as current team server
• Second cracked CS distribution watermark 987654321 (CS 4.4 components)
• GCC 15.2.0 as current build environment (newest toolchain observed)
• 4-generation beacon evolution chain — began with CS key B, migrated to key A, now building RSA-independent
• Mixed cracked CS distribution assembly (auth/JAR keypair mismatch)
• JAR authkey.pub MD5: 8bb4df00c120881a1945a43e2bb2379e

What would increase attribution confidence:

• A second OpenStrike campaign sighting — even one reuse would enable actor clustering
• SSL cert 6e8efd85... pivot — searched in paid Shodan and Censys with no results (closed)
• Language artifacts or operational timing analysis (UTC+8 window would be significant)
• Victim identification or targeting pattern

9. MITRE ATT&CK Coverage

Table shows only HIGH confidence technique mappings. LOW confidence techniques omitted.

T1056.001 (Keylogging via keylogger.js) and T1112 (Registry modification via template.vbs) omitted — MODERATE confidence only, pending deployment evidence.

10. Indicators of Compromise

IOCs are provided in structured machine-readable format. This feed contains only new indicators from the April 8 expanded analysis — not duplicating the April 6 feed.

• New IOC feed: /ioc-feeds/new-files-found-20260408-iocs.json
• Original IOC feed (April 6): /ioc-feeds/open-directory-172-105-0-126-20260406-iocs.json

IOC Summary (new indicators from this investigation):

High-Priority Indicators for Immediate Action:

11. Detection Rules

/hunting-detections/new-files-found-20260408-detections/

Companion file for original samples: /hunting-detections/open-directory-172-105-0-126-20260406-detections/

Deploy both detection files for full campaign coverage. Review for deduplication before production deployment.

12. Intelligence Gaps and Confidence Summary

Findings by Confidence Level

DEFINITE:

• OpenStrike family identification (banner string confirmed)
• CS 4.9.1 “Pwn3rs” team server (cs_ts.log direct evidence)
• 4-generation implant evolution chain (gen-1 through gen-4)
• Gen-4 complete function-level reversal
• Gen-4 WIP status — nonce not transmitted, key exchange broken
• EAX-redirect technique classification (SetThreadContext, no NtUnmapViewOfSection)
• Two RSA key ecosystems mapped across 10 beacon DLLs
• Auth/JAR keypair mismatch confirmed (Java class reverse engineering)
• CovertVPN 5-channel transport documentation
• 5-port server architecture confirmed

HIGH:

• Pre-operational staging assessment
• “Pwn3rs” as distribution branding, not operator persona
• Watermark 987654321 as distribution-level Chinese-nexus indicator
• GCC 15.2.0 as current operator build environment
• Intermediate-level CS internals knowledge

MODERATE:

• Pre-operational motive over espionage or financial crime
• 2-3 year participation in cracked CS ecosystem
• Chinese-language cracked CS ecosystem as toolkit source

INSUFFICIENT:

• Named actor or geographic origin attribution
• Current infrastructure status
• Sleeve DLL contents (encrypted)

Open Intelligence Gaps

Gaps & Assumptions (ACH/KAC)

ACH Runner-Ups by Conclusion Category

Malware family classification (winner: H1 — Novel OpenStrike + cracked CS, DEFINITE confidence)

• Runner-up: H2 — Previously known toolkit variant. Status: ELIMINATED. The OpenStrike banner string [*] OpenStrike Beacon starting... does not match any indexed malware family, all 10 custom GCC 15 tools were VirusTotal first-reports, and no public threat intelligence references this family name. The runner-up is eliminated rather than merely deferred.
• Assumption underlying H1: The banner string is not a deliberate false flag planted to mislead investigators into labeling this a novel family. Sensitivity: LOW. No evidence suggests deliberate misdirection; the four-generation development chain is internally consistent and would not be necessary for a false-flag operation.

Threat actor motive (winner: H3 — Pre-operational capability development, MODERATE confidence)

• Runner-up: H2 — Espionage preparation. Status: POSSIBLE but unresolvable with current data. CovertVPN (Layer 2 network pivoting) and a complete post-exploitation toolkit are consistent with both espionage and capability staging for any intrusion type. No specific espionage targeting indicators were observed, but the capability set exceeds what is typically assembled for opportunistic financial crime.
• Evidence needed to distinguish: Victim identification, targeting pattern, or language/timing artifacts pointing to specific sector focus.

Threat actor attribution (winner: H1/H2 tied — Chinese-nexus or non-Chinese actor using Chinese-sourced tools, INSUFFICIENT confidence for any named actor)

• Runner-up: H4 — Named APT (You Dun or other). Status: LOW. Six specific technical dimensions contradict the You Dun linkage documented in Section 8. No Tier 1 or Tier 2 source attributes this campaign to any named actor.

Key Assumptions (KAC)

13. Response Orientation

Detection priorities (highest-fidelity behavioral indicators):

• EAX-redirect hollowing: rundll32.exe spawned with no command-line arguments by a service process, followed by cross-process VirtualAllocEx → WriteProcessMemory → VirtualProtectEx(RX) → SetThreadContext. Detection anchor must be SetThreadContext, NOT NtUnmapViewOfSection — the latter is never called.
• Named pipe pattern: \\.\pipe\MSSE-*-server creation (Sysmon Event IDs 17/18) — stock Artifact Kit indicator the operator has not changed.
• ICMP anomaly: echo request/reply with payload >128 bytes containing 0xDD or 0xCC markers — CovertVPN tunnel traffic.

Persistence artifacts to locate and remove:

• Windows service DceRpcSs (masquerades as legitimate RpcSs — different name)
• Kernel driver service npf installed from %TEMP%\npf.sys
• File at C:\Windows\Temp\beacon.dll
• Active named pipe \\.\pipe\MSSE-[0-9]+-server

Containment categories:

• Block 172.105.0.126 at perimeter for all ports — extend existing April 6 block to ports 809 and 50050
• Alert or block SSL certificate SHA256 6e8efd85110de376426cde809f25d50ffcbb1d0e39d11c82913757cb277e15dd at TLS inspection points
• Hunt for ICMP tunneling indicators on network egress monitoring
• Deploy detection rules from /hunting-detections/new-files-found-20260408-detections/
• Rotate credentials on any host confirmed to have communicated with 172.105.0.126

14. References

Primary Sources (Tier 1):

• MITRE ATT&CK — T1055.012 (Process Hollowing), T1095 (Non-Application Layer Protocol), T1572 (Protocol Tunneling), T1543.003 (Windows Service): https://attack.mitre.org
• Cobalt Strike Official Documentation: “Covert VPN — Layer 2 Pivoting”; “Cobalt Strike’s Process Injection: The Details”; “Why is rundll32.exe connecting to the internet?”
• Microsoft Documentation: BCryptDeriveKey API reference: https://docs.microsoft.com/en-us/windows/win32/api/bcrypt/nf-bcrypt-bcryptderivekey

Threat Intelligence Research (Tier 2):

• Elastic Security Labs: “Extracting Cobalt Strike Beacon Configurations” — CS crypto architecture (SHA256 key split documentation)
• Unit42 (Palo Alto Networks): “Cobalt Strike Analysis and Tutorial: CS Metadata Encryption and Decryption” — RSA + AES beacon crypto
• hunt.io: “Rare Watermark Links Cobalt Strike 4.10 Team Servers to Ongoing Suspicious Activity” — watermark methodology
• hunt.io: “Guide to Hunting Cobalt Strike, Part 1 (Open Directories)” — open directory hunting context
• thedfirreport.com: “Cobalt Strike, a Defender’s Guide” — named pipe and rundll32 detection
• Recorded Future: “Multi-Method Approach to Identifying Rogue Cobalt Strike Servers” — SSL cert fingerprinting methodology
• CrowdStrike: “HijackLoader Expands Techniques” (2024) — EAX redirect in modern malware
• CybersecurityNews (DFIR Report attribution): “Chinese Hackers Toolkit Uncovered” (October 28, 2024) — watermark 987654321 and 红队版.zip case

Community Research (Tier 3):

• Chris Duggan (@TLP_R3D, Twitter/X, September 7, 2024): “Pwn3rs Striked” SSL cert Shodan pivot documentation
• Intel Dalal / Medium: “Part 1: Digging into ASNs for Threat Hunting: Cobalt Strike” — watermark 987654321 infrastructure detail
• svch0st / Medium: “Stats from Hunting Cobalt Strike Beacons” (2021) — watermark prevalence data
• Cyphur Blog: “Hunting for Leaked Cobalt Strike v4.9” — Pwn3rzs leak origin documentation
• Sidechannel.blog: “Cobalt Strike: Infrastructure Analysis” — mixed watermark operator patterns

Forum Documentation (Tier 4 — distribution provenance only):

• bbs.kanxue.com threads 279166, 279348, 280276 — Pwn3rzs CS 4.9/4.9.1 distribution documentation (Chinese security forum, primary evidence of distribution origin date and channel)

15. Related Investigation

Original April 6 Report: /reports/open-directory-172-105-0-126-20260406/

The original investigation established the OpenStrike family name, the Trinity Protocol cryptographic architecture, UTA-2026-004 designation, and the initial infrastructure profile for 172.105.0.126. Both reports together constitute the complete public technical record of the OpenStrike campaign through April 8, 2026. Deploy IOC feeds and detection rules from both investigations for full coverage.

© 2026 Joseph. All rights reserved. See LICENSE for terms.
